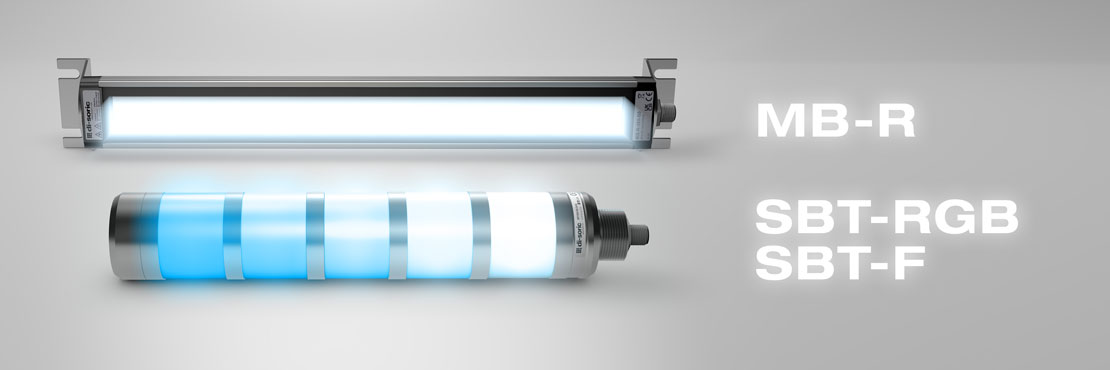

NEW: MACHINE LIGHTING MB-R AND
SIGNAL COLUMNS SBT-F / SBT-RGB WITH IO-LINK
The flexible machine illumination for all cases
The robust, semicircular machine lighting in 7 lengths with fixed adjustable mounting brackets for use in machines or harsh production environments.
Our signal column series with 3 to 5 segments

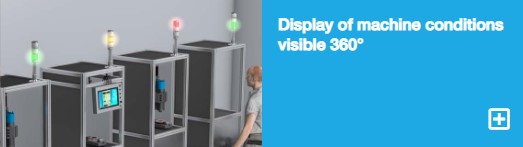

Signal machine and line statuses with the 360° visible display simply by using our signal columns SBT-F and SBT-RGB. With up to 5 segments in fixed or freely configurable light colors and optional buzzer.
MACHINE LIGHTING

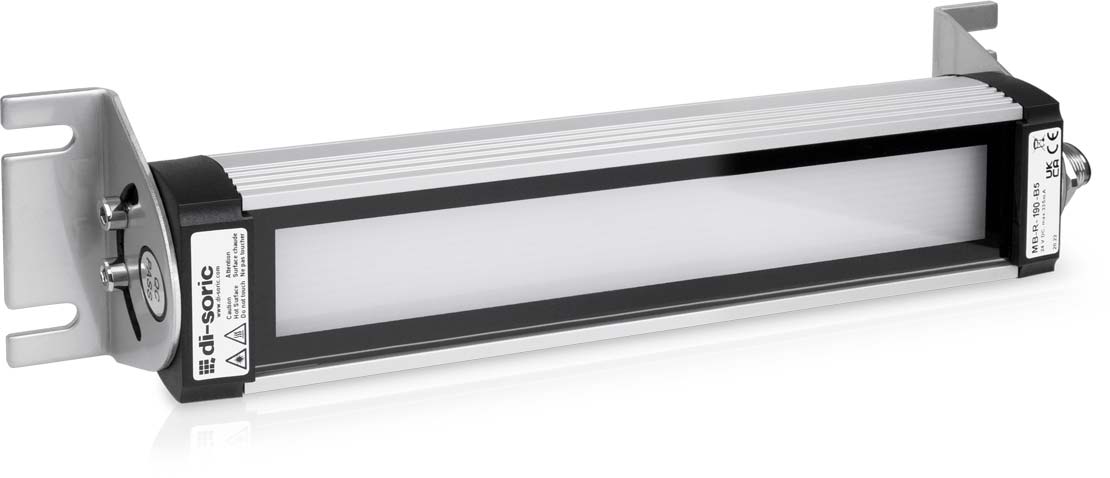

MB-R SEMICIRCULAR
Our all-in-one machine lighting
Our robust, semicircular machine lighting. It is ideal for use in machines or in rough production environments due to its expanded temperature range, modern plug connection technology and hardened safety glass. The neutral white light ensures pleasant lighting conditions.

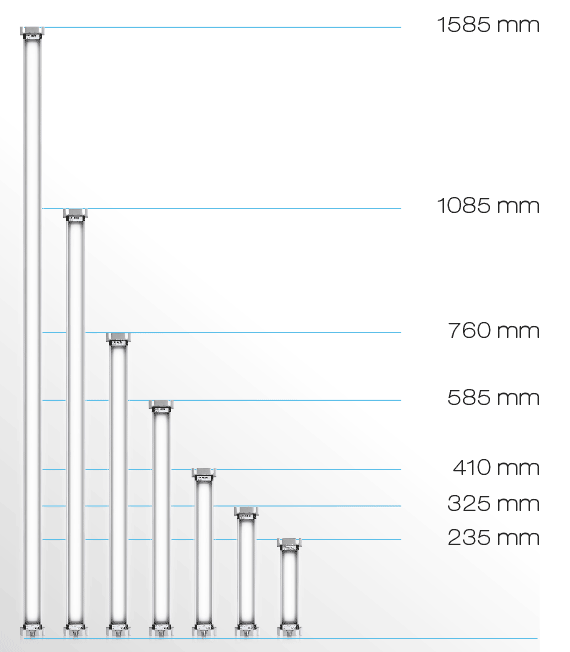

Available lengths
Highlights
Features
SIGNAL LIGHTS
SIGNAL COLUMNS SBT-F MULTI-SEGMENT FIXED COLOR
Can be used immediately – economical – efficient
SThe multi-segment signal columns from the SBT-F series with their fix defined colors can be used immediately, since each of the 3-5 individual segments can be triggered via its digital inputs.
The signal columns from the SBT-F series are available with 3-5 segments and optionally with a buzzer that is easily audible over long distances.
Highlights
Features

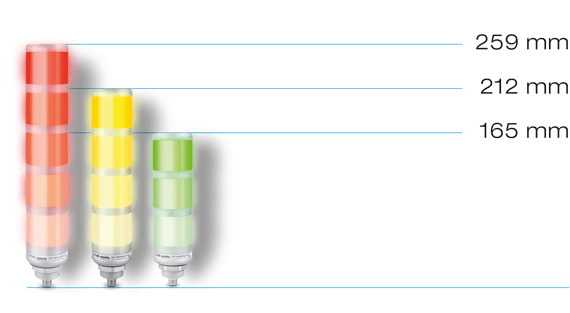

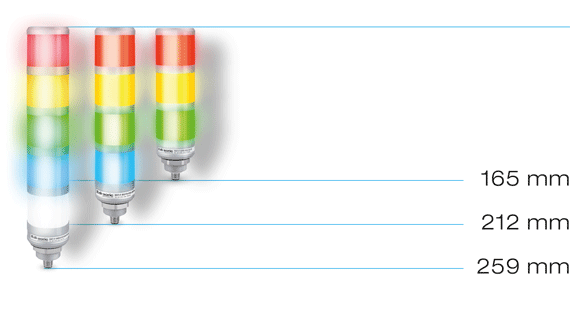

Available lengths and segments SBT-F
The compact design and high protection type of the series without a buzzer enable use in rough ambient conditions.

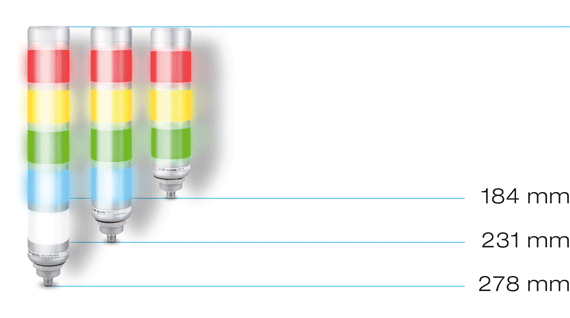

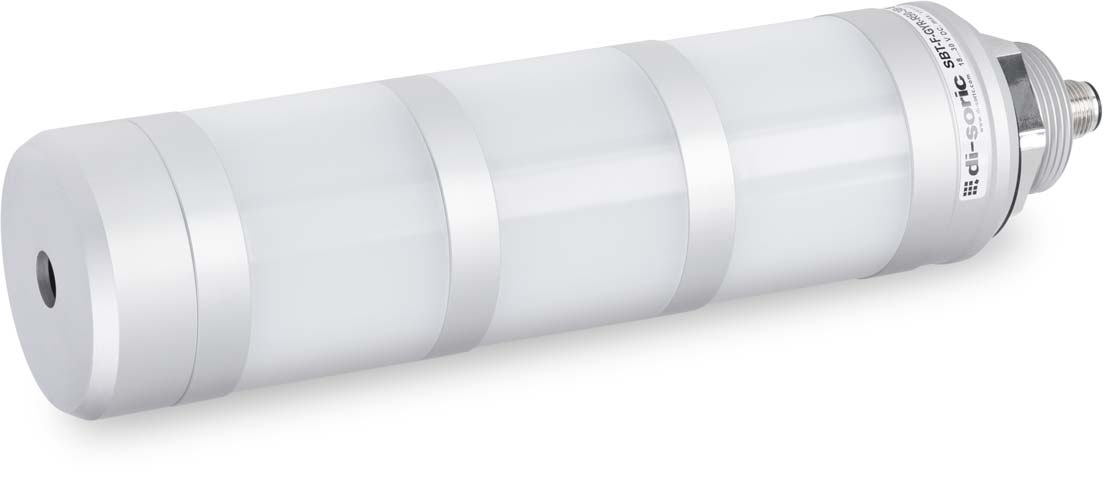

SBT-F with Buzzer
The greatest flexibility in applications is achieved in the combination of optical and acoustic signals with a buzzer, which additionally increases perceptibility.
SIGNAL LIGHTS
Good signal effect
Can be used immediately – Can be individually configured - Highly efficient

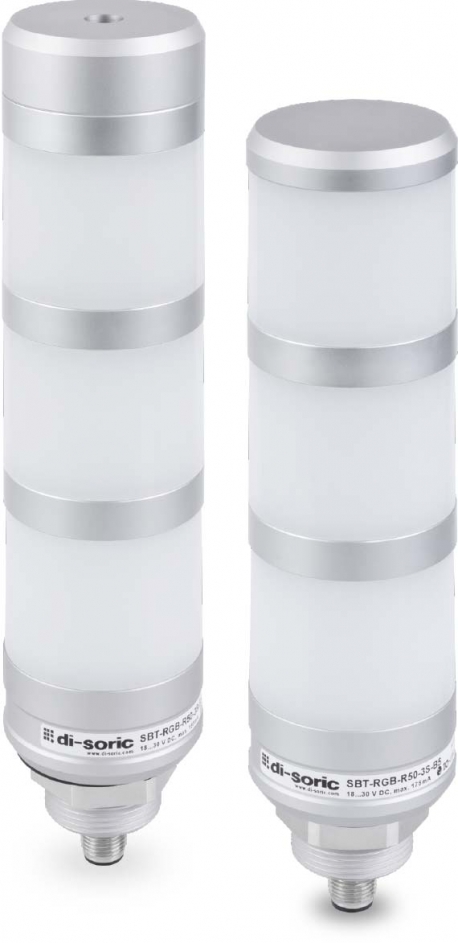

The multi-segment signal columns from the SBT-RGB series achieve their maximum flexibility through control by IO-Link, through which they offer a nearly infinite number of colors and possible representations independent of segment.
Additionally, by way of IO-Link, the individual brightness and the flashing behavior per segment can be parameterized. The signal columns from the SBT- RGB series are available with 3-5 seg-ments and optionally with a buzzer that is easily audible over far distances.
Highlights
Features

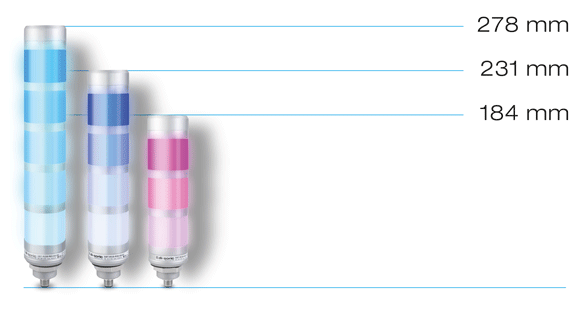

Available lengths and segments SBT-RGB
The compact design and high protection type of the series without a buzzer enable use in rough ambient conditions.
SBT-RGB with Buzzer
The greatest flexibility in applications is achieved in the combination of optical and acoustic signals with a buzzer, which additionally increases perceptibility.
SIGNAL LIGHTS WITH IO-LINK
FLEXIBILITY THROUGH 3 OPERATING MODES
Segment mode
In Segment mode, individual segments can be
activated via IO-Link, which enables countless
color configurations. Colors can be adjusted
for each segment on the fly via IO-Link, the
intensity of 10-100% can be varied or blinking
or flashing behavior can be adjusted.
Level mode
In Level mode, there is the option to define a
background color (inactive segment) via IO-
Link process data, and customers can adjust
these, for example, as a corporate identity
color, and the fill level is displayed with the
active segments (predefined color selection
possible).
External trigger mode
In External trigger mode, 8 preset color and
light configurations (factory settings or freely
digital trigger inputs – even without IO-Link.
CLEVER THANKS TO IO-LINK
SAVE TIME AND MONEY
Get straight to the point
Our SBT-RGB multi-segment IOL signal columns, SB-RGB multi-segment IOL signal lighting and SBP-RGB 1-Segment IOL signal lighting have the same IO-Link functions and are configured the same. They can also be configured in ongoing operation directly via IO-Link process data in accordance with customer requirements.
